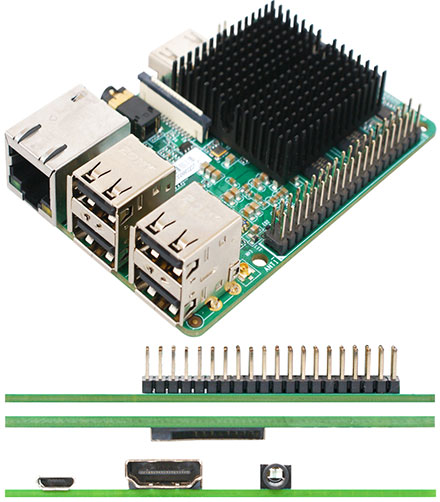

Jetway JR3288A-DG2N (ARM Cortex A17, Android 5.1 / Linux Debian 9)

Jetway JR3288A-DG2N (ARM Cortex A17, Android 5.1 / Linux Debian 9)

  • Rockchip® ARM Cortex A17 RK3288 Quad-core 1.8GHz
  • On board 1333/2GB DDR3L DRAM up to 4GB
  • On board 8G Flash ROM up to 64GB
  • 1* Realtek GbE, 1* 26bit GPIO, 4* USB2.0, 1* OTG, 1* HDMI, 1* MIPI DSI, 1* MIPI CSI
  • 1* Micro SD up to 64GB
  • Support 802.11 b/g/n 2.4G, BT-V4.0
  • Support Android 5.1 and Debian9.0


Share

209.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
 Model
Model – JR3288A-DG2N
Part Number – JR3288A-DG2N
 Form Factor
Dimensions – 85 * 56mm (1.8”)
 Processor System
Processor/CPU – Rock Chip® ARM Cortex A17 RK3288 Quad-core 1.8GHz
– Rock Chip® RK808-B PMU
 Memory
DRAM – Onboard DDR3L 1333MHz 2GB
 Expansion Slot
Dimensions – 1* Micro SD
 Graphics
Graphics – Mali T764 GPU, shared memory
– 1* HDMI (Max Resolution: 1920×1080@60Hz)
– 1* MIPI DSI (Max Resolution: 1920×1080@60Hz)
– Support Dual Displays
 Ethernet
Ethernet – 1* Realtek RTL8211E-VB GbE
Wifi – 1* Realtek RTL8723BS 802.11b/g/n 2.4G WIFI and BT-V4.0
 Audio
Audio – 2 channel HD audio: ES8316
 Storage
Storage – 8GB Flash ROM (Max 64GB)
 I/O Port
Rear I/O – 1* OTG (OTG Co-lay DC Jack 5V)
– 1* HDMI
– 1* AUDIO
– 2* USB2.0 (Left Side)
– 1* Ethernet (Left Side)
– 1* Micro SD (Right Side)
Internal I/O – 26bit GPIO
– 1* MIPI DSI
– 1* MIPI CSI
– 1* I2C
 Watchdog Timer
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments(10sec ~ 255min)
 Power
Power 5V DC-in(PWR Con)
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Compliance
Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
Temperature – Operating: -10°C ~ 60°C
– Storage: -20°C ~ 70°C
 Warranty
Warranty – 2 Years Limited Warranty
